BESPOKE DRY WELL MOUNTED PUMPING SYSTEM
FOULPAC™ DWM is a dry well mounted pumping station designed for high incoming flows without deep

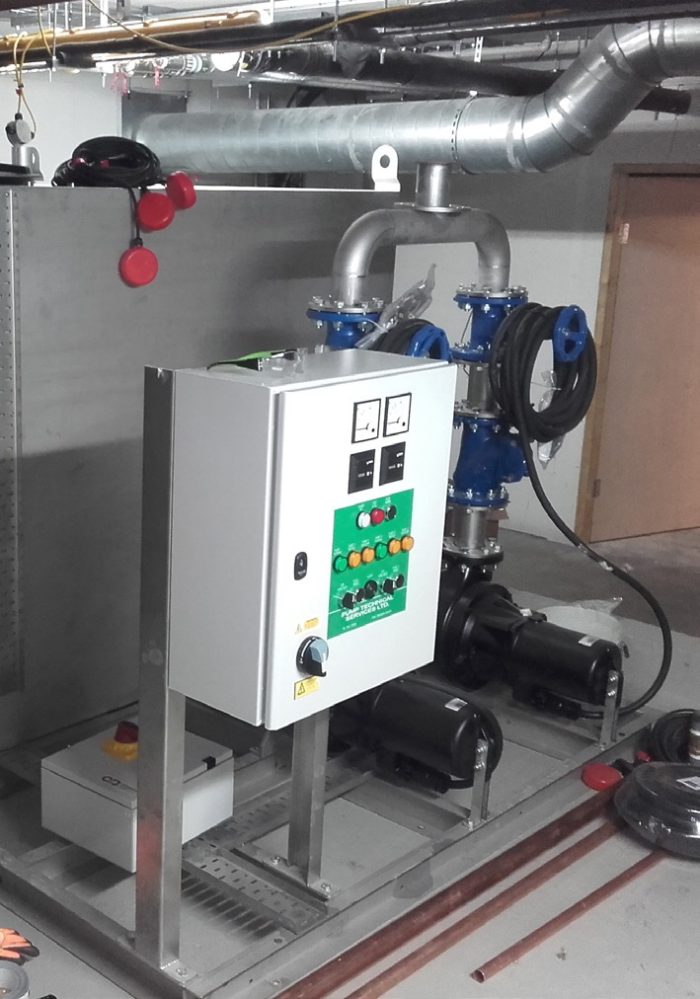

excavation or major civil works. Its floor-standing design suits basement and plantroom installs, especially
where foul systems or attenuation tanks are present
Configuration Options:

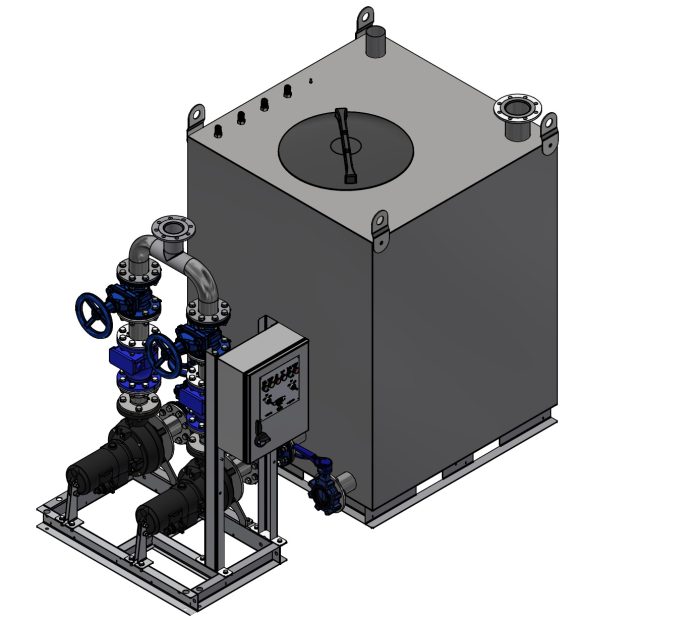

Fully Welded Stainless Steel Tank System Complete pumping station, with integrated tank: Ideal for standalone foul water use where storage is required.

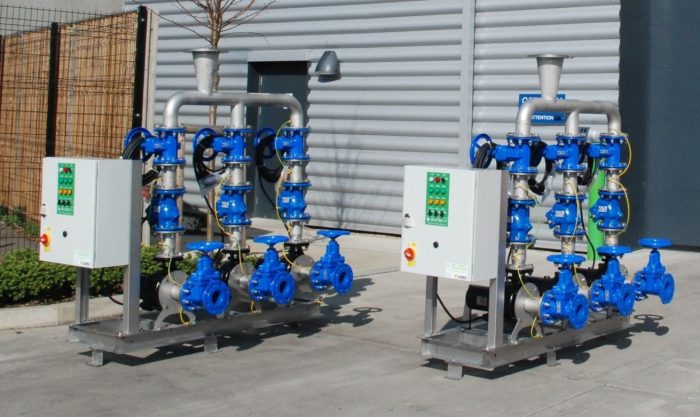

Skid-Mounted Pump & Manifold Set: Connects directly to existing tanks (e.g. attenuation systems) for compact, efficient operation.
Both options are compatible with Multistream™ and Multifree™ pumps, selected to match duty and solids handling requirements.
SYSTEM COMPONENTS:
Tank (if applicable):
- Fully welded 304-grade stainless steel (316-grade optional)
- Internally reinforced
- Flanged inlet, vent, suction ports, and access cover
Pump Set:
- Multistream™ or Multifree™ submersible
pumps - Mounted on stainless steel base frame
- Supplied with motor cables and
discharge connections
Pipework & Valves:
- Stainless steel manifold with flanged outlet
- Gate and check valves.
Control Panel:
- Electrode or ball float based control with duty alternation
- High-level alarm, trip indicators, BMS outputs
- IP65-rated enclosure with isolator.
Installation:
- Available with full PTS installation
- Or delivered for contractor install
- Contracts team ensures smooth site
integration
