Multidrain UV3

Multidrain UV300

Multidrain UV600

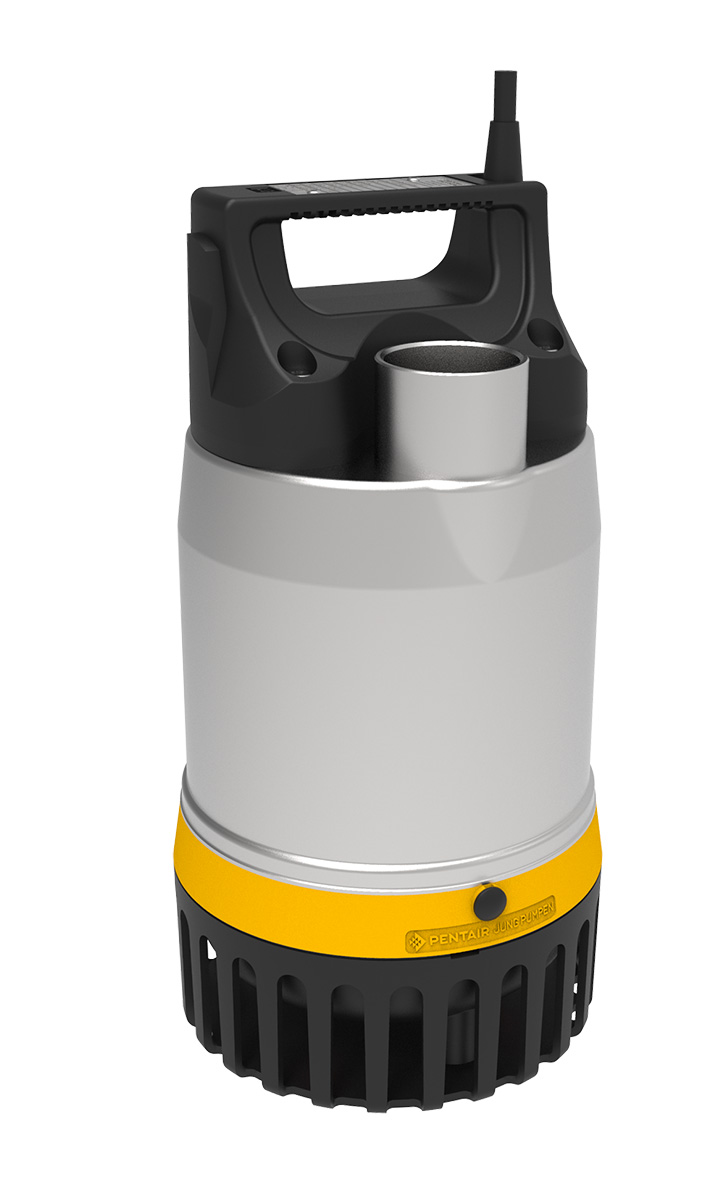

The Multidrain UV3 is made of stainless steel for stationary or portable use.

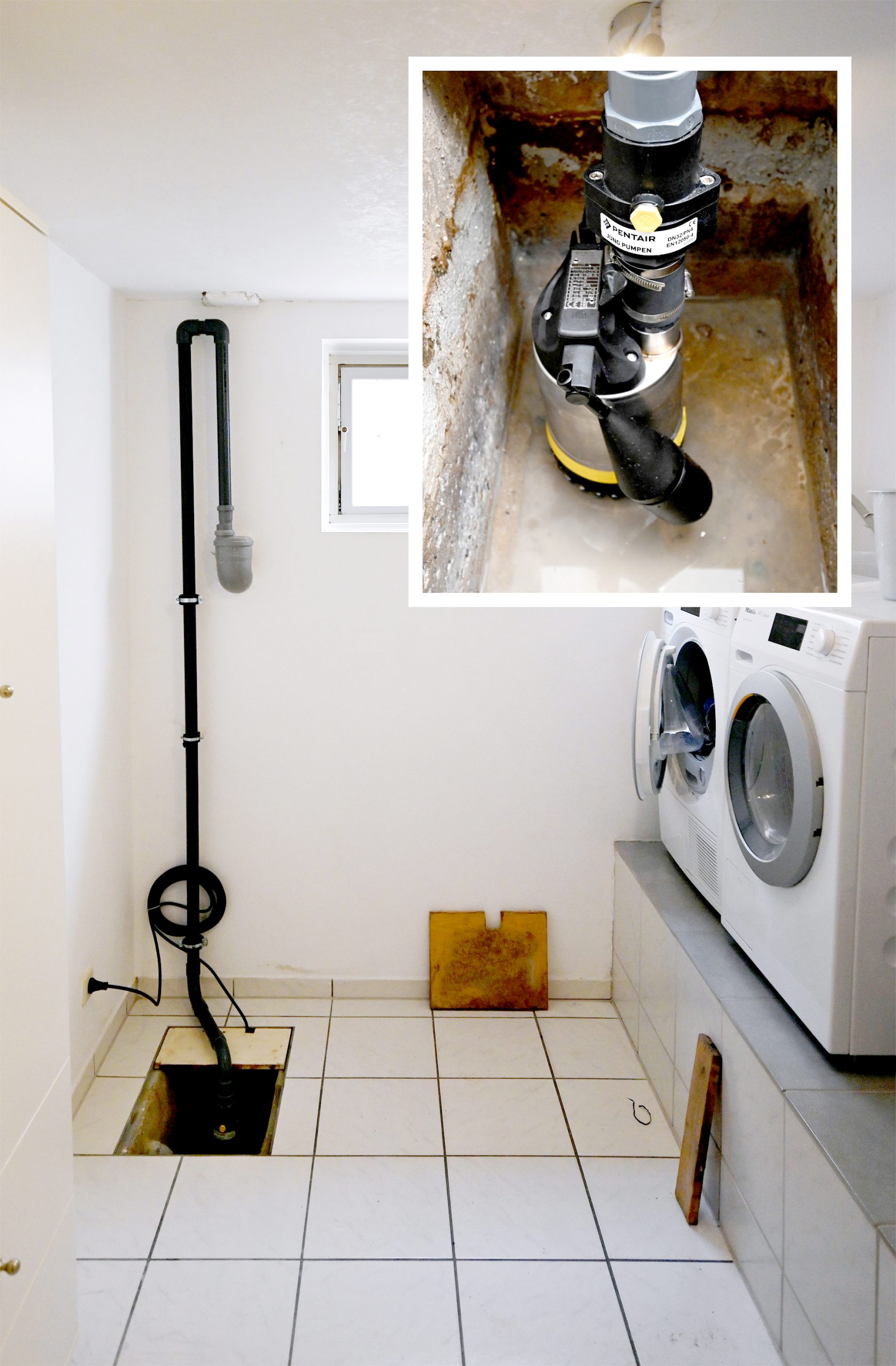

With portable use this pump reliably empties tanks, ponds or swimming pools. It is also perfect to use in emergencies such as a flooded cellar or basement. When the strainer base is removed the pump can remove wastewater down to a level of 5mm.

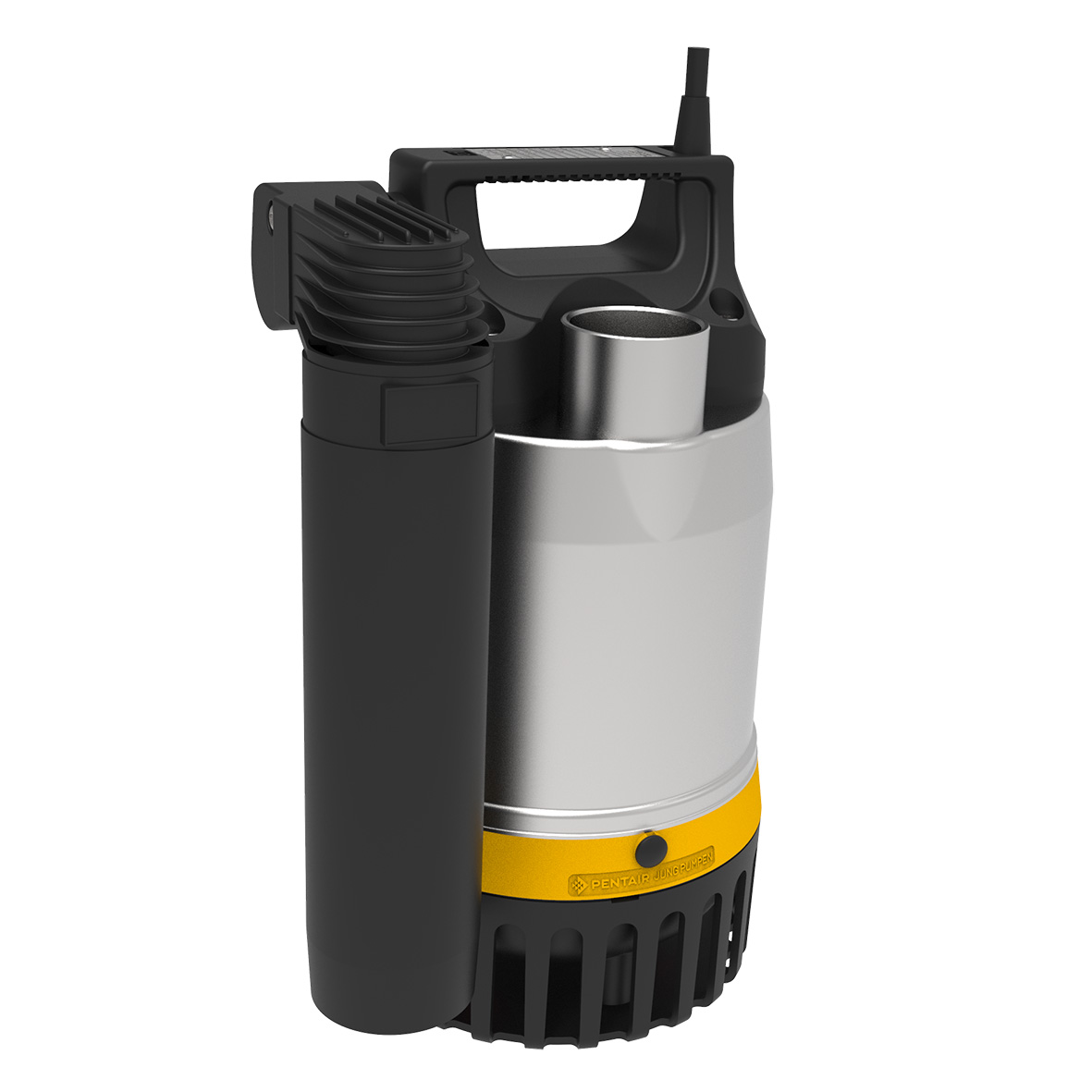

For stationary use the Multidrain UV3 S with automatic float switch has a number of different configurations to ensure that it has the best switch on/off points for the application and that the pump will best fit in the sump.

The pump is complete with a motor cooling jacket which, combined with the thermal motor protection, gives the pump great protection from overheating.

The pump is very versatile in handling some higher temperature wastewater. Whilst the pump can handle wastewater generally at up to 35 degrees Celsius, the pump can also handle wastewater at up to 70 degrees Celsius for short periods.

  • High-Quality Stainless-Steel design
  • Cooling Jacket for Motor housing
  • Self-ventilation
  • Vertical Discharge branch 1 ¼”
  • Free Passage 10mm
  • Moisture sealed cable inlet

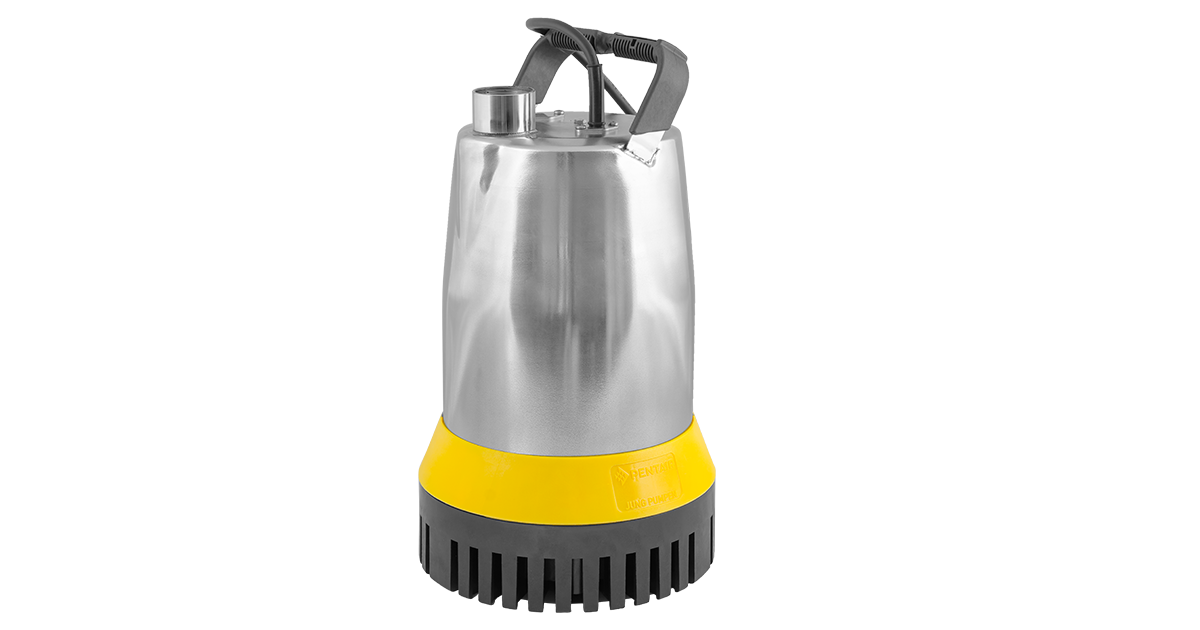

The submersible drainage pumps Multidrain UV 300 can be used wherever there is dirty, rain, ground, seepage or drainage water with solids up to 10 mm.

They can thus be used both in fixed installations in building drainage systems and in all transportable applications such as water extraction, emptying ponds or basins or, above all, in the removal of flooding inside and outside buildings.

The motor jacket cooling makes the pumps particularly suitable for submerged operation. A special thermal protection ensures that the pumps are not damaged even when running dry.

The pumps can be supplied either with or without a mounted submersible ball contact switch and 10m cable.

  • High-Quality Stainless-Steel design
  • Cooling Jacket for Motor housing
  • Option ball float
  • Vertical Discharge branch 1 ½”
  • Free Passage 10mm
  • Moisture sealed cable inlet

The centrifugal submersible drainage pumps Mulitdrain UV 600 have been developed for drainage applications where high delivery heads are required. This pump range can pump against a total head of 25m.

All kind of drainage / greywater with solids up to 10 mm can be disposed from large depths.

Shopping centres, high-rise buildings, undergrounds stations and other buildings with deep basements are the right environment for the UV 600 pumps.

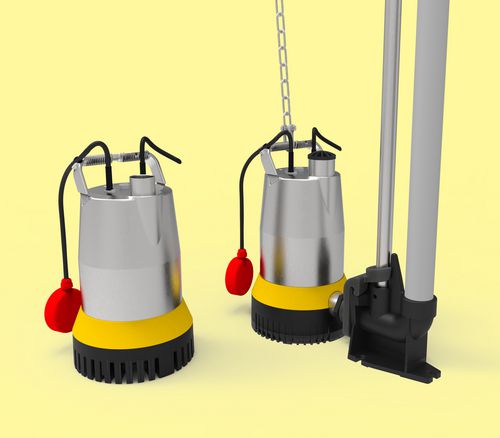

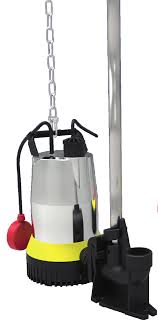

In addition to a fix sump installation these pumps can also be used for mobile applications. The pressure pipe can be connected either to the vertical or the horizontal discharge. The horizontal one is suitable for sump installations with a guide rail system (GR 50). For mobile applications or in narrow sumps the connection to the vertical discharge port is recommended.

  • High-Quality Stainless-Steel design
  • Cooling Jacket for Motor housing
  • Self-ventilation
  • Option of either vertical or horizontal 2” discharge branch
  • Free Passage 10mm
  • Can be guide rail mounted
