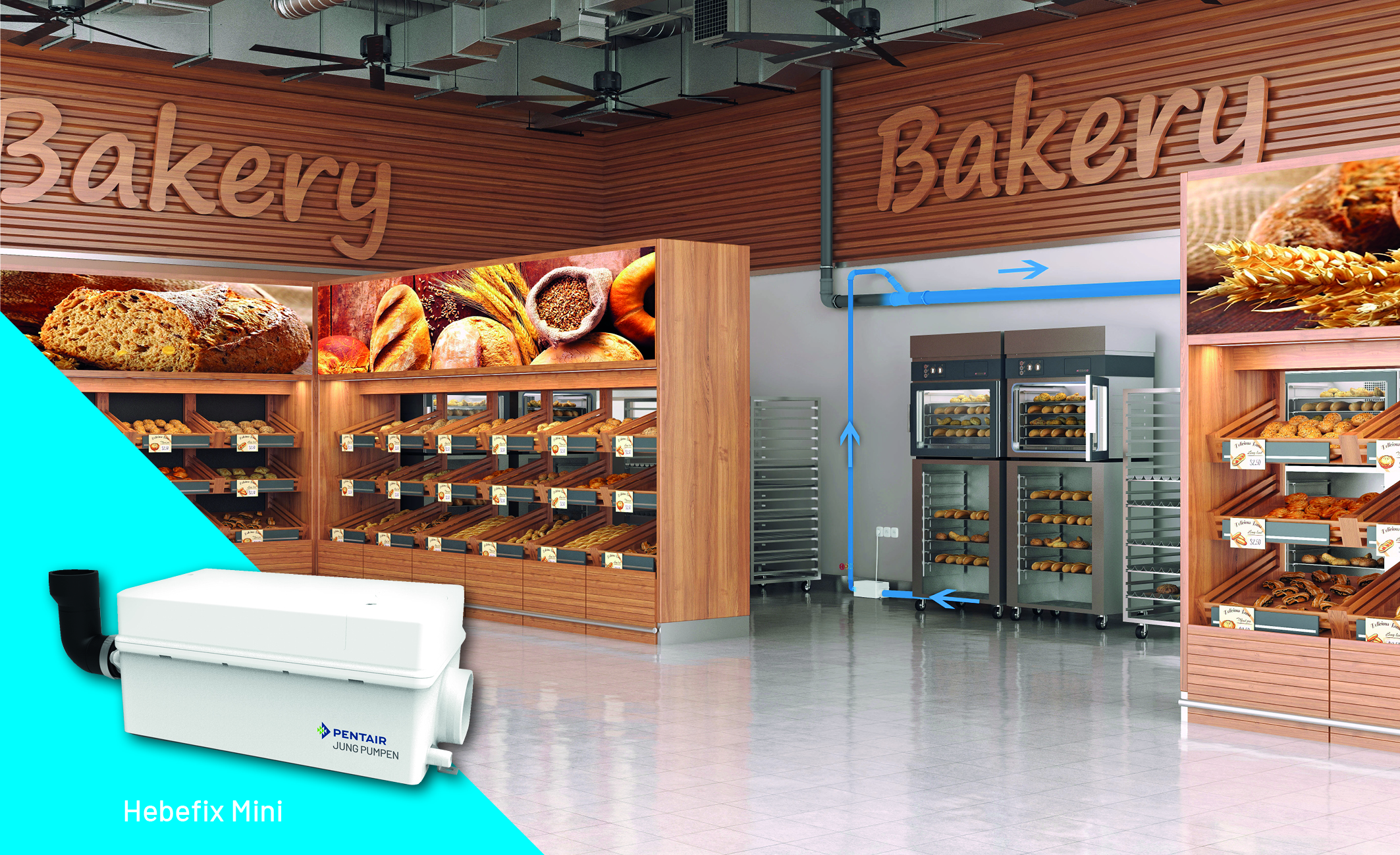

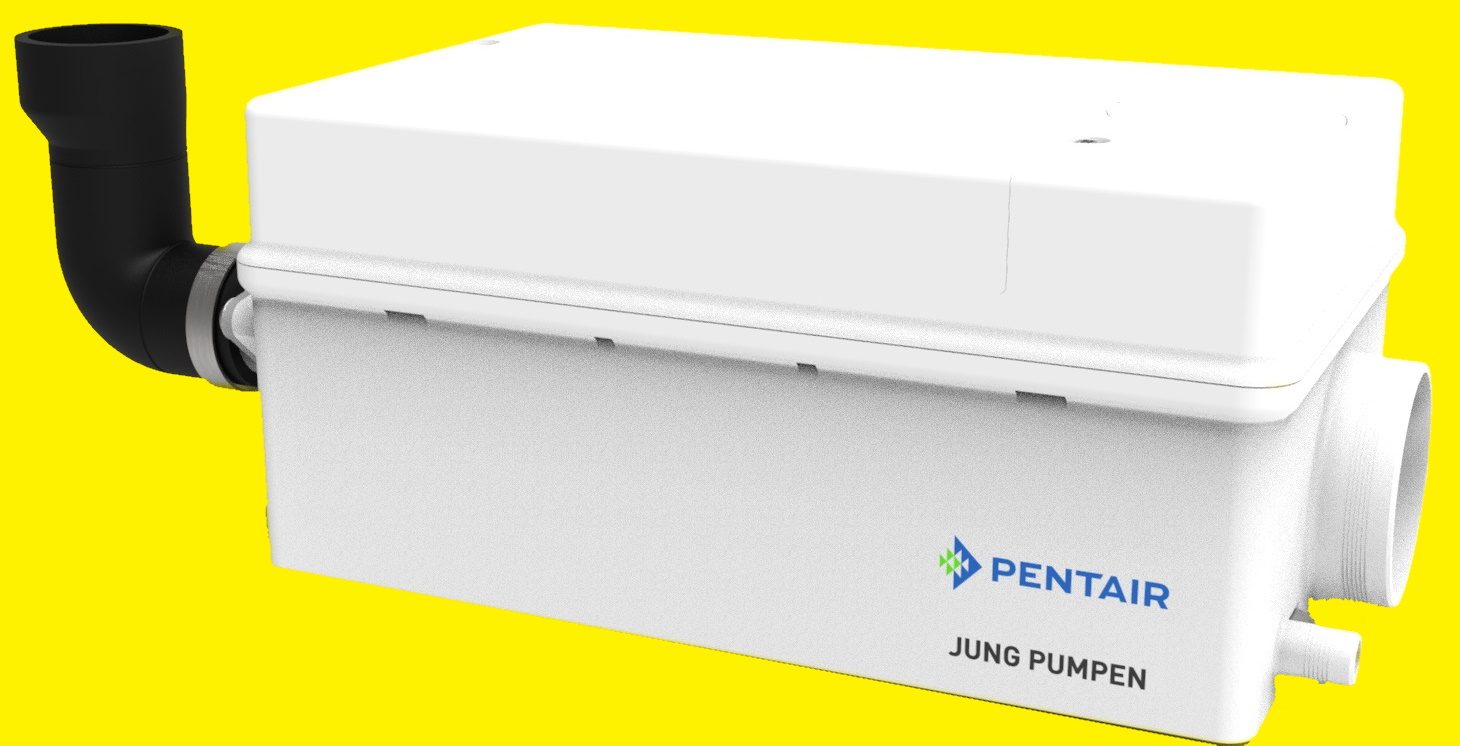

Hebefix Mini

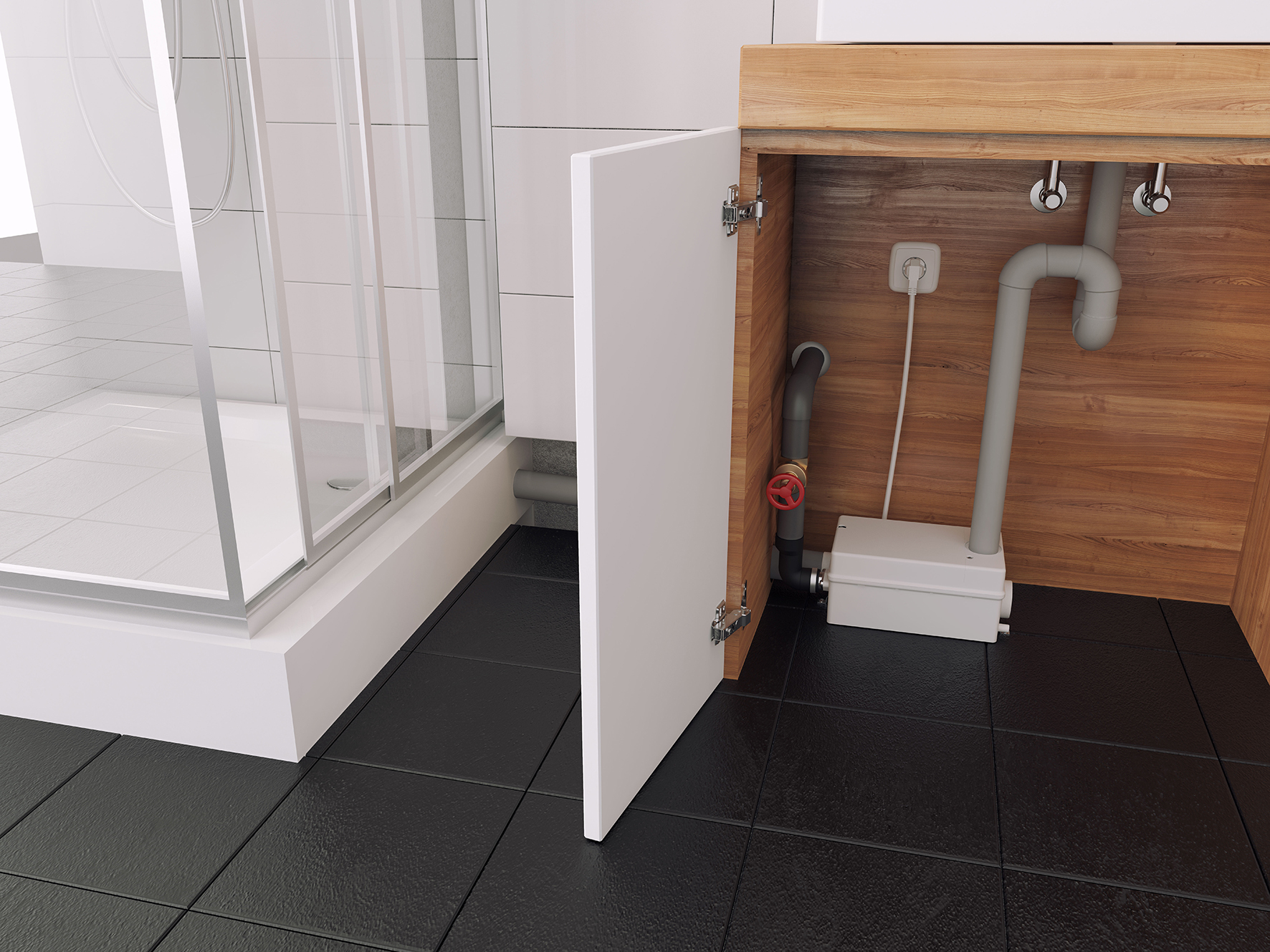

This drainage lifting station is the smallest of our Hebefix range and can be installed quickly and easily. Thanks to its compact design it can fit into areas that other pump systems cannot.

Wash hand basins, showers, bidets, water softeners and condensate can all be connected to the Hebefix Mini via the three inlet options on the unit.

The Hebefix Mini is also a good all-rounder, with its design able to deliver high temperature wastewater up to 55 degrees Celsius (70 degrees Celsius for short periods of time). This means the Hebefix Mini can be used with domestic dishwashers and other similar high temperature applications within that temperature band.

For further information and downloads on our Hebefix Mini:

Hebefix Mini

Hebefix

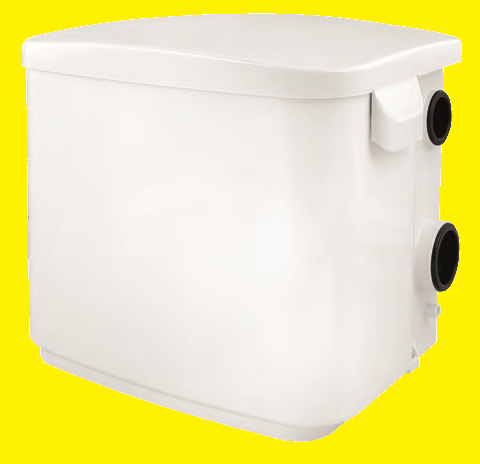

The Hebefix above floor tank is the ideal solution to deliver wastewater from wash hand basins, sinks, floor level showers, domestic washing machines and dishwashers.

When connected to a dishwasher or washing machine we would always recommend using our Power Isolation alarm which will cut power to the appliances and avoid the systems from overflowing in emergency situations.

The system has a total capacity of 26 litres and is quick to install, utilising one of our U3KS, U3KS Spezial and U5KS pumps.

The Hebefix has 4 potential inlet connections with two at lower levels where the low-level float accessory will need to be incorporated with the pump.

For further information and downloads on our Hebefix:

Hebefix

Hebefix Plus & Hebefix Extra

Hebefix Plus

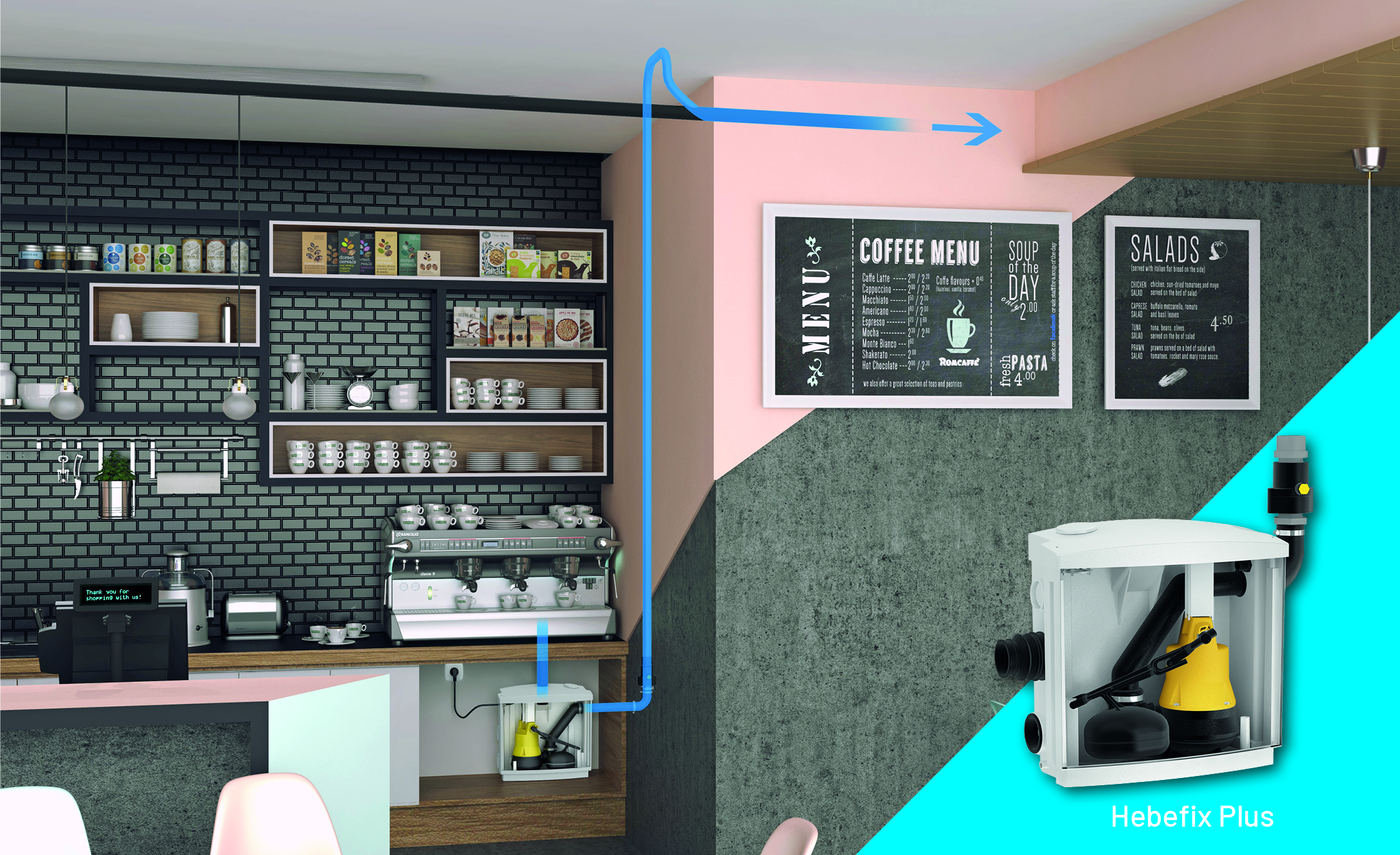

The Hebefix Plus & Hebefix Extra are easily installed lifting station appliances for disposing of faeces-free wastewater above and below the local back pressure level.

Thanks to the small depth of its tank, it can be used in all commercial pre-wall systems. Its attractive design and intelligent technology also allow it to be fitted directly under a washbasin or in any other location. All grey water producers such as washbasins, showers, bathtubs, sinks, washing machines, etc. can be connected.

For further information on our Hebefix Plus & Hebefix Extra:

Hebefix Plus

Hebefix Extra



Hebefix 100

Hebefix 100H

Hebefix 200

The Hebefix 100 floor-mounted sump is a water pumping station for lifting sewage-free and industrial/commercial effluents up to 40 degrees Celsius.

It consists of a free-standing plastic tank (approx. 75 ltr) with four combination inlets for 50 mm or 110 mm o.d. PVC pipes.

The internal tank discharge pipe kit is provided and suitable for fitting for right or left outlet, (connection R 1 ½”).

For further information & downloads on our Hebefix 100:

Hebefix 100

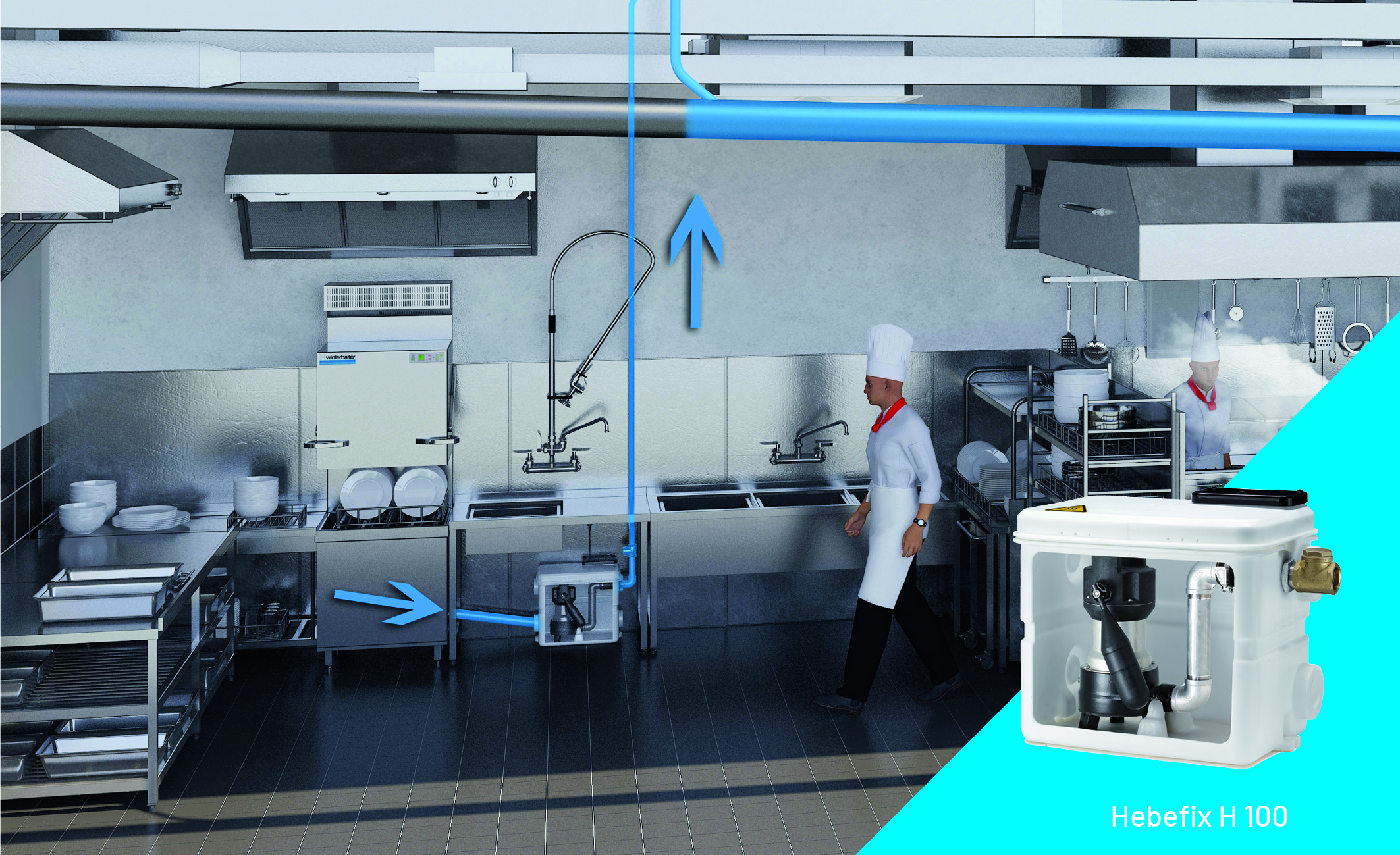

The Hebefix 100H version is resistant against waste water up to 80 Celsius.

It consists of a free-standing plastic tank (approx. 75 ltr) with four combination inlets for 50 mm or 110 mm o.d. PVC pipes.

The internal tank discharge pipe kit is provided and suitable for fitting for right or left outlet, (connection R 1 ½”).

For further information & downloads on our Hebefix 100H:

Hebefix 100H

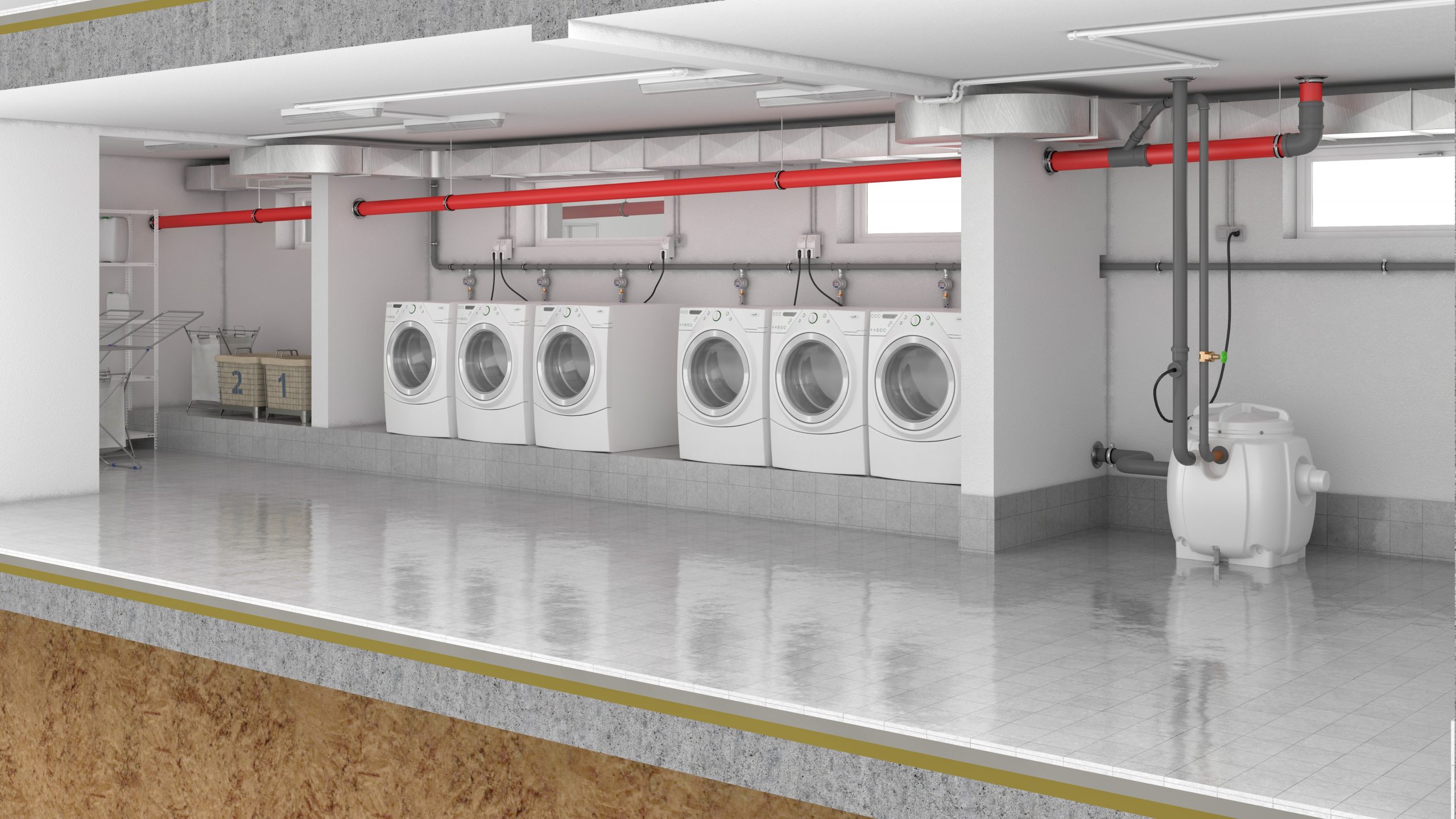

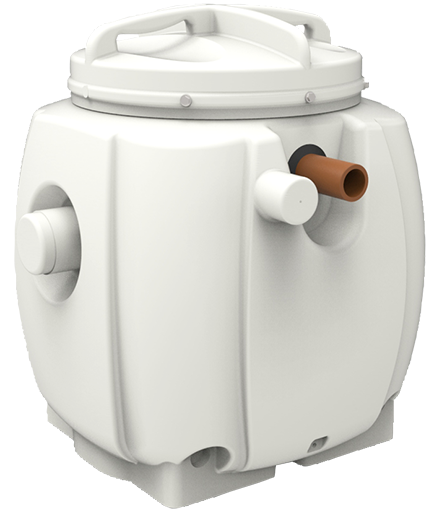

The Hebefix 200 is available for bigger domestic wastewater volume and larger storage capacity. Its floor standing nature means that large construction work can be avoided- the perfect solution for laundries, basements, cellars and other similar applications.

The Hebefix 200 can be installed with either single pump or dual pump setup. The single pump configuration will generally come with an automatic pump with automatic level control, whilst the dual pump configuration would operate on a duty standby basis through a submersible switch pack connected to our PTS control panel to be mounted within 10m of the unit.

For further information & downloads on our Hebefix 200:

Hebefix 200
